Quarky Intellio – AI and AR Development Kit with Camera, Mic and Speaker
Play Video
LEGO, Arduino and Raspberry Pi Compatible Camera Module for Edge AI and Robotics
Intellio is a LEGO-compatible AI module that adds audio, vision and augmented reality to hands-on projects. With a built-in camera, microphone and speaker, it supports educational and creative exploration. It integrates seamlessly with Arduino and Raspberry Pi ecosystems, supporting coding progression from block-based programming to Python in PictoBlox and the Arduino IDE. With built-in Wi-Fi, Bluetooth and multiple I/O ports, it’s an all-in-one platform for AI & AR innovations like self-driving cars, AR marker-based Navbots, desk companions and robo pets.
Code with
Compatible with
Connects with
Build AI, AR, and Robotics Projects with Quarky Intellio
Learn AI, AR and robotics through hands-on projects. Our Intellio project gallery features beginner to advanced projects with Quarky Intellio, combining AI, AR, coding, electronics, robotics and creative design.
Key Benefits of Hands-on AI Learning with Quarky Intellio
Supports Block Coding, Python & Arduino C++
For young coders to makers, AI-AR capabilities are just a click away with PictoBlox and Arduino IDE compatibility.
Seamless Connectivity with Different Boards
Effortlessly connect your favorite boards like Arduino, ESP32 or Raspberry Pi along with multiple sensors and motors.
LEGO TechnicCompatible
Seamlessly connect with LEGO construction parts and level-up your usual built game to Al advancement.
DIY Skill Courses
Hands-on structured courses with capstone projects are designed for young learners for home and school learning.
Quarky Intellio Kits for Every Innovator
Start your AI and robotics journey. Select the Discovery Kit for beginner AI and coding foundational projects or the Rover Kit to create, code, and control your own smart robot for advanced robotics, sensor integration, and autonomous projects.

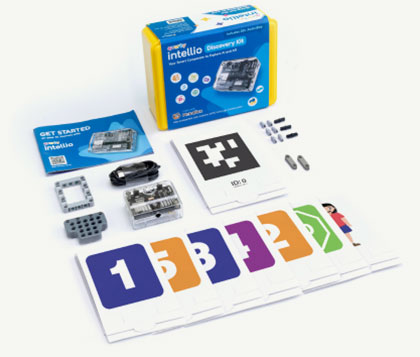

Intellio Discovery Kit
The Discovery Kit is an introduction to learners to AI and AR through engaging hands-on projects like car speed detection, smart door bot, nanny cam and many more.

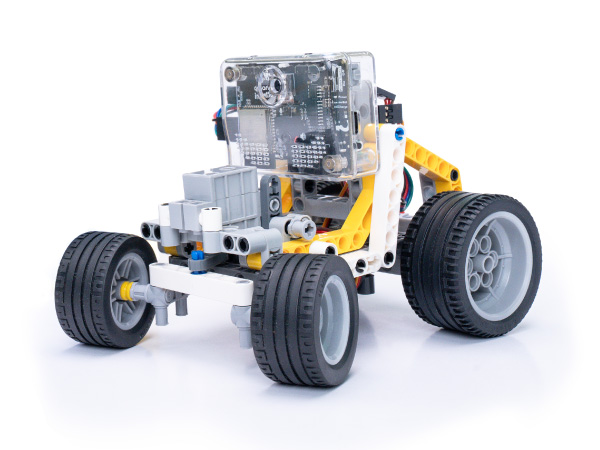

Intellio Rover Kit
The Rover Kit, takes a step further in the learning curve, offering kids, makers and tinkerers to go for edge AI and computing enabling them to make projects like self driving car, autonomous robo soccer, delivery robot and many more.
Intellio for Classrooms (ages 10+), Makerspaces and Activity Centers
Equip your classroom with complete Quarky Intellio AI and Robotics bundles. Packages include hardware, software, courses, teachers training and support for teaching hands-on AI, AR, robotics, and coding.
Intellio Mini Classroom Pack
- 6 x Intelio Rover Kits with AI-AR Modules, Motors and Building Blocks with Charging Hub and Spares.
- 10 Online Courses with 50 fun-filled DIY activities each.
- Supports 1 to 3 students per Kit.
Class Size 12-18 Students

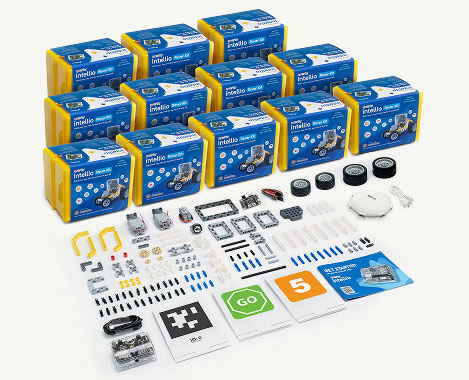

Intellio Classroom Pack
- 12 x Intelio Rover Kits with AI-AR Modules, Motors and Building Blocks with Charging Station and Spares.
- 10 Online Courses with 50 fun-filled DIY activities.
- Supports 1 – 3 students per kit.
Class Size 24-36 Students

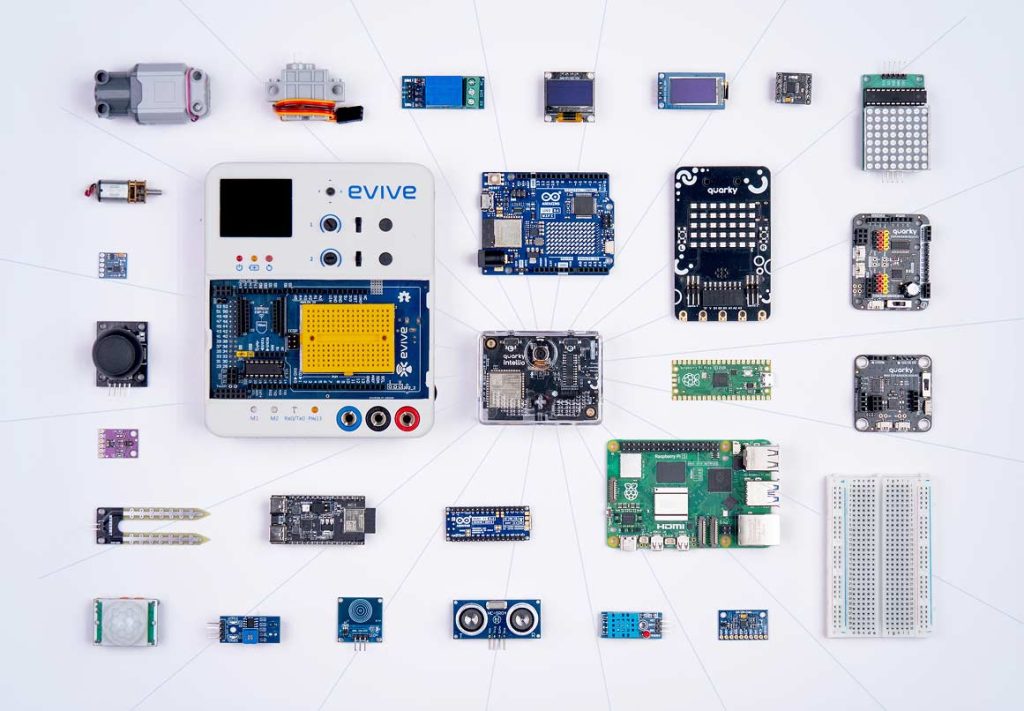

Universal Hardware Integration Connect Boards, Sensors and Motors
Our AI module supports multi-device connectivity. Link Arduino, Pi, servo motors, and specialized sensors like ultrasonic rangefinders and LiDAR modules for complex robotics and AI builds

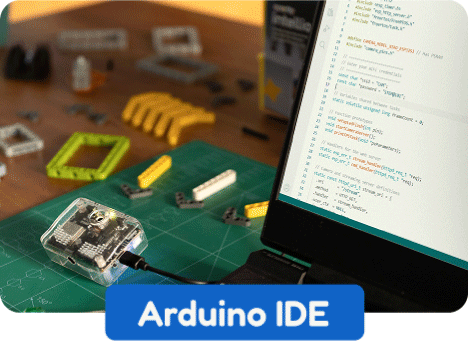

Start Your Coding Journey with Blocks, Advance to Python and Arduino IDE
From beginner to pro, code with ease. Start coding with visual blocks, advance to Python scripting, and master professional development with Arduino IDE to bring your AI and robotics projects to life.
Innovate and Create

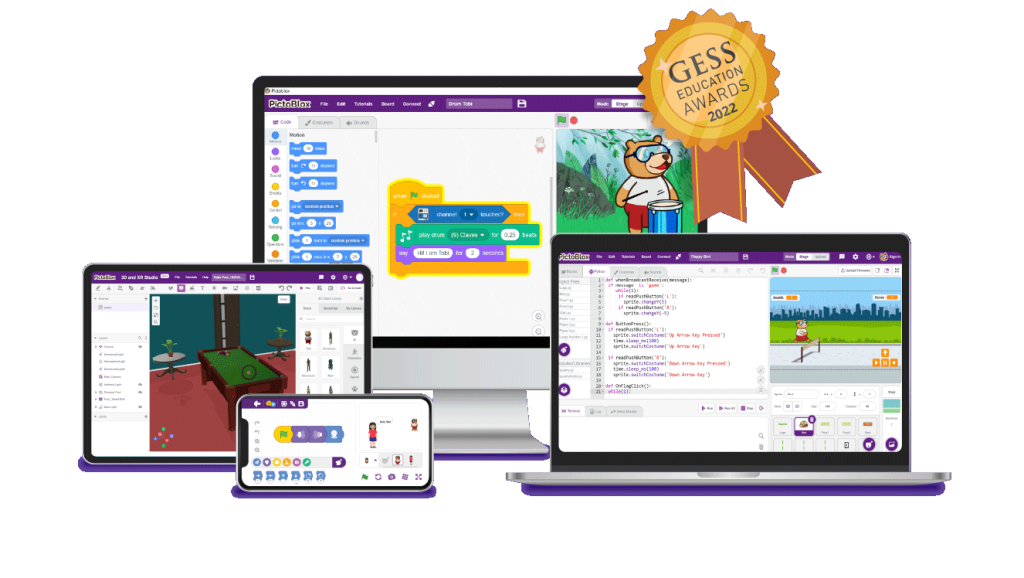

PictoBlox is a revolutionary platform to build and bring ideas to life through hands-on coding. It seamlessly integrates Artificial Intelligence, Machine Learning, the Internet of Things (IoT), Robotics, Game Design, 3D Modelling, and Extended Reality into one powerful creative environment.
AI, Robotics and ML Courses for Structured Skill Path
Our progressive curriculum guides you from foundational skills to advanced applications. Embark on a structured learning journey with Quarky Intellio. Start with AI and robotics using intuitive block coding, advance to Python programming, master machine learning (Level 1 & 2), explore augmented reality, and integrate with Arduino and Raspberry Pi.
AI with Quarky Intellio using Block Coding
Get started with beginner-friendly activities while exploring AI extensions in PictoBlox with Block coding
AI & Robotics with Quarky Intellio using Block Coding
Taking AI a step further by adding robotics experiments with real-world builds like the Gripper robot.
AI with Quarky Intellio using Python
Learn Python through hands-on coding, real world projects and create challenges using PictoBlox.
Machine Learning with Quarky Intellio - L1
Step into the worls of ML and discover how to train models that can see, hear and respond.
Machine Learning with Quarky Intellio - L2
Go beyond the basics, explore how TinyML with Edge Impulse enables intelligent computing.
AI & Robotics with Quarky Intellio using Python
Construct a 4-wheel robot, program servos, and grippers to perform real-world tasks using Python.
Augmented Reality with Quarky Intellio
Learn basics of AR and start building interactive experiences using AR Markers in PictoBlox 3D-XR Studio.
Bridge Courses with Quarky, Arduino and Pi
Uncover concepts of Core Robotics, and advance AI-learning with your favourite board.
Validated by Experts, Celebrated Worldwide
Our platform has earned global awards and is championed by prestigious supporters in technology. These honors and endorsements reflect our worldwide influence in advancing accessible, cutting-edge AI education.

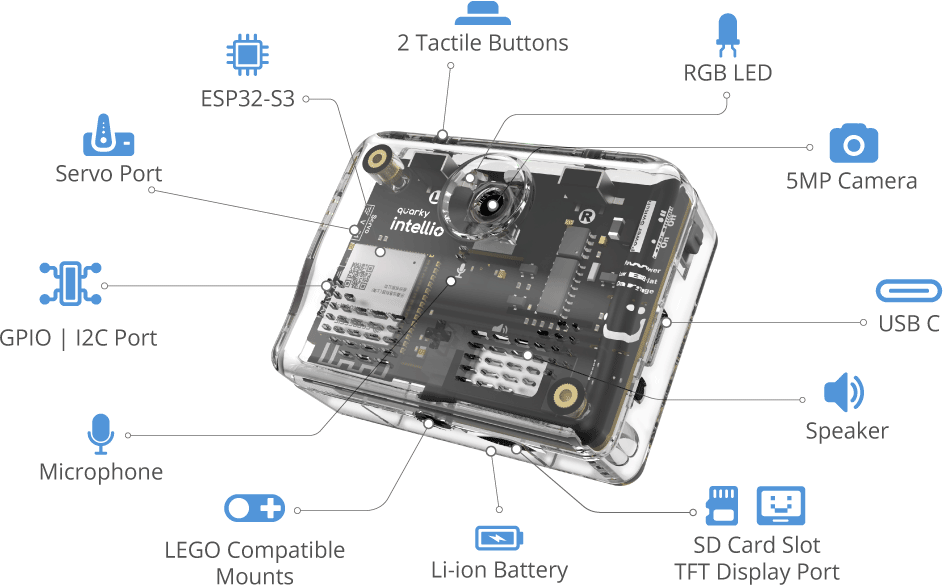

Quarky Intellio Specs, Technical Details and Features
| Processor | ESP32-S3-WROOM-1-N16R8, 16MB Flash |
| Wi-Fi | Wi-Fi 802.11b/g/n, 2.4 GHz Band |
| Bluetooth | BLE - Bluetooth 5.0 |
| Battery | Li-ion 1000mAh 3.7V Battery, Lasts up to 3.5 hrs on Live Streaming Audio-Video |
| Microphone | Omnidirectional MEMS Microphone |
| MicroSD Card Slot | Up to 32GB of Storage |
| Mechanical Mounting | 6 mounting holes for Construction Part Connectors Axle connector for mounting Servo Motor |
| Programmable LED | 1 RGB LED WS2812B-4020 |
| Indicators | Power LED, Low Battery LED, and Charging LED |
| Casing | Transparent Polycarbonate |
| USB | USB Type C, Up to 1M Baud Rate, Charging |
| Camera | OV5640, Auto-focus Lens, FOV - 72° |
| Speaker | Hi-Res 8Ω 1W Speaker with inbuilt Codec |
| TFT Display Port | SPI TFT display connects via a 7-pin SD-card connector to the GPIO interface. |
| GPIO and I2C Port | 2 Pins, Imax Output 40mA I2C Interface 3.3V and Ground Pins Connects with Quarky Expansion Board |
| Switches | 2 Programmable Tactile Switches, Power Switch and Reset Switch |
| Servo Port | 1 Servo Motor Channel - 3 Pins Vcc (3.7-5V),Imax output 1A |
| Dimensions and Weight | 65mm x 49mm x 26mm and 60 g |
Hands-on Projects Made with Intellio
FAQs on Quarky Intellio
– Makers, tinkerers and hobbyists who love building with LEGO-style blocks and want to add AI/AR.
– Home learners (ages 10+) and parents looking for STEM/robotics kits.
– Educators or Innovation Labs looking for an advanced robotics kit for student projects.
– Innovators who want to experiment with AI, computer vision, AR overlays and coding in a modular way.
You can connect Quarky Intellio to PictoBlox through 2.4GHz Wi-Fi, Bluetooth 5.0 and USB-C. It does not support 5GHz Wi-Fi band.
Yes. Many AI and TinyML projects run directly on the device — perfect for classrooms or workshops without continuous Wi-Fi. You can use it in Bluetooth or USB Serial mode, or run it in standalone mode (e.g., saving images to SD card). It needs Wi-Fi to stream camera and audio feed to PictoBlox or to internet.
Yes. It can stream video and audio over internet through Wi-Fi using the Quarky Intellio Web Server.
The frame rate and quality depend on Wi-Fi strength and power supply.
Quarky Intellio comes with a 1000mAh rechargeable Li-ion battery. It lasts 3.5 hours while streaming camera feed continuously over Wi-Fi.
Quarky Intellio needs a motor driver to control motors. It communicates with the motor driver through I2C protocol.
While a Raspberry Pi is a versatile general-purpose computer, Quarky Intellio is a specialized sensory hub. The key difference is integration: with Intellio, the camera, mic, speaker, and wireless connectivity are pre-assembled, and optimized to work together seamlessly out-of-the-box, saving you hours of setup and troubleshooting.
– Built-in camera, mic and AR support for modern AI/AR experiences.
– LEGO-compatible building system for creative freedom and modularity.
– Dual coding modes: beginner (blocks) + advanced (Python).
– Designed for home-learning, makerspaces, and school labs — bridging fun and future skills.
– Backed by STEMpedia’s learning ecosystem (tutorials, courses, community), which adds value.
You can code using:
– Block-based drag-and-drop coding (ideal for beginners)
– Python scripting (for more advanced users)
Quarky Intellio has the access to PictoBlox and it’s diverse range of extensions.
You’ll also get access to online tutorials and a learning portal.
Absolutely! These kits are ideal for classroom activities, innovation labs, home-learning sessions or maker-spaces.
Teachers can integrate it into lessons on AI and AR with Coding and Robotics. We will also provide educator resources and lesson plans through our learning portal.
It supports Technic-compatible DC motors (4–5V) with JST Connectors (included in the Rover Kit) for movement and servo motors for precise control. Encoders are not included.
Yes. Intellio supports Python with which you can deploy TinyML models trained using platforms like Edge Impulse.
Yes, via a motor driver included in the Mini Expansion Board (included in the Rover Kit) supported by inbuilt extensions in both Block Coding and Python environments.
Designed for classroom use, Intellio is encased in high quality Polycarbonate and has undergone drop and robustness testing to ensure durability.
Intellio is a self-sufficient programmable board that with an i/o port and is supported by several PictoBlox extensions like AI based object detection that doesn’t require an internet connection. It can further support edge-computing tasks that can fully run offline once the code is uploaded. However, to unlock its full potential like GPT-based features you will require an internet connection.
The LMS is expected to launch in mid-January and is currently being piloted with students.
The first batch of kits will begin shipping in January.
Quarky Intellio includes high fidelity sensors viz – camera and microphone fora strong focus on AI, computer vision, and AR-based DIY learning. Essentially, Intellio is like an upgraded version of Quarky that provides learners the evolved ability of AI-centric innovation in their robot designs. Intellio combined with Quarky increases its capabilities multifold.
Yes. With the upcoming Quarky Connect extension, you’ll be able to connect up to 16 devices for coordinated multi-robot tasks like robot parades or warehouse simulations.
